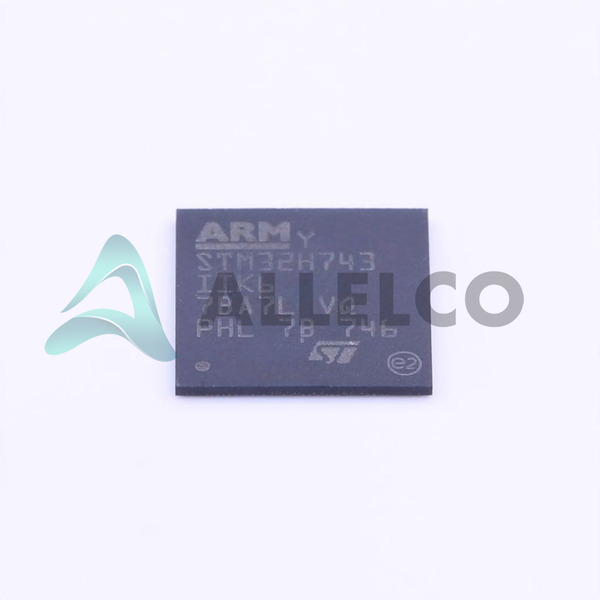

STM32H743IIK6 Tech -specificaties
STMicroelectronics - STM32H743IIK6 Technische specificaties, attributen, parameters en onderdelen met vergelijkbare specificaties als STMicroelectronics - STM32H743IIK6
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| Fabrikant | STMicroelectronics | |
| Voltage - Supply (Vcc / Vdd) | 1.62V ~ 3.6V | |
| Leverancier Device Pakket | 176+25UFBGA (10x10) | |
| Snelheid | 480MHz | |
| Serie | STM32H7 | |
| RAM Size | 1M x 8 | |
| Programmageheugentype | FLASH | |
| Program Memory Size | 2MB (2M x 8) | |
| randapparatuur | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT | |
| Verpakking / doos | 201-UFBGA | |
| Pakket | Tray |
| Productkenmerk | Attribuutwaarde | |
|---|---|---|
| oscillator Type | Internal | |
| Temperatuur | -40°C ~ 85°C (TA) | |
| Aantal I / O | 140 | |
| montage Type | Surface Mount | |
| EEPROM Size | - | |
| gegevens Converters | A/D 36x16b; D/A 2x12b | |
| Core Size | 32-Bit Single-Core | |
| Core Processor | ARM® Cortex®-M7 | |
| connectiviteit | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG | |
| Base Productnummer | STM32H743 |
| ATTRIBUUT | BESCHRIJVING |
|---|---|
| RoHs-status | |
| Vochtgevoeligheidsniveau (MSL) | 3 (168 Hours) |
| Bereikstatus | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
De drie delen aan de rechterkant hebben vergelijkbare specificaties als STMicroelectronics STM32H743IIK6.
| Productkenmerk |  |
 |
 |
 |
|---|---|---|---|---|
| Onderdeel nummer | STM32H743IIK6 | STM32H743IIT6 | STM32H743AII6 | STM32H743BIT6 |
| Fabrikant | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Pakket | Tray | Tray | Tray | Tray |
| gegevens Converters | A/D 36x16b; D/A 2x12b | A/D 36x16b; D/A 2x12b | A/D 36x16b; D/A 2x12b | A/D 36x16b; D/A 2x12b |
| Temperatuur | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Core Processor | ARM® Cortex®-M7 | ARM® Cortex®-M7 | ARM® Cortex®-M7 | ARM® Cortex®-M7 |
| EEPROM Size | - | - | - | - |
| Verpakking / doos | 201-UFBGA | 176-LQFP | 169-UFBGA | 208-LQFP |
| Leverancier Device Pakket | 176+25UFBGA (10x10) | 176-LQFP (24x24) | 169-UFBGA (7x7) | 208-LQFP (28x28) |
| Snelheid | 480MHz | 480MHz | 480MHz | 480MHz |
| randapparatuur | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT |
| Program Memory Size | 2MB (2M x 8) | 2MB (2M x 8) | 2MB (2M x 8) | 2MB (2M x 8) |
| Voltage - Supply (Vcc / Vdd) | 1.62V ~ 3.6V | 1.62V ~ 3.6V | 1.62V ~ 3.6V | 1.62V ~ 3.6V |
| oscillator Type | Internal | Internal | Internal | Internal |
| Serie | STM32H7 | STM32H7 | STM32H7 | STM32H7 |
| Aantal I / O | 140 | 140 | 131 | 168 |
| Base Productnummer | STM32H743 | STM32H743 | STM32H743 | STM32H743 |
| RAM Size | 1M x 8 | 1M x 8 | 1M x 8 | 1M x 8 |
| Programmageheugentype | FLASH | FLASH | FLASH | FLASH |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| connectiviteit | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG |
| montage Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
Download STM32H743IIK6 PDF -datasheets en STMicroelectronics -documentatie voor STM32H743IIK6 - STMicroelectronics.
