TM4C123GH6ZRBI Tech -specificaties
Texas Instruments - TM4C123GH6ZRBI Technische specificaties, attributen, parameters en onderdelen met vergelijkbare specificaties als Texas Instruments - TM4C123GH6ZRBI
Productkenmerk | Attribuutwaarde | |
---|---|---|
Fabrikant | Texas Instruments | |
Voltage - Supply (Vcc / Vdd) | 1.08V ~ 3.63V | |
Leverancier Device Pakket | 157-BGA Microstar Junior (9x9) | |
Snelheid | 80MHz | |
Serie | Tiva™ C | |
RAM Size | 32K x 8 | |
Programmageheugentype | FLASH | |
Program Memory Size | 256KB (256K x 8) | |
randapparatuur | Brown-out Detect/Reset, DMA, Motion PWM, POR, WDT | |

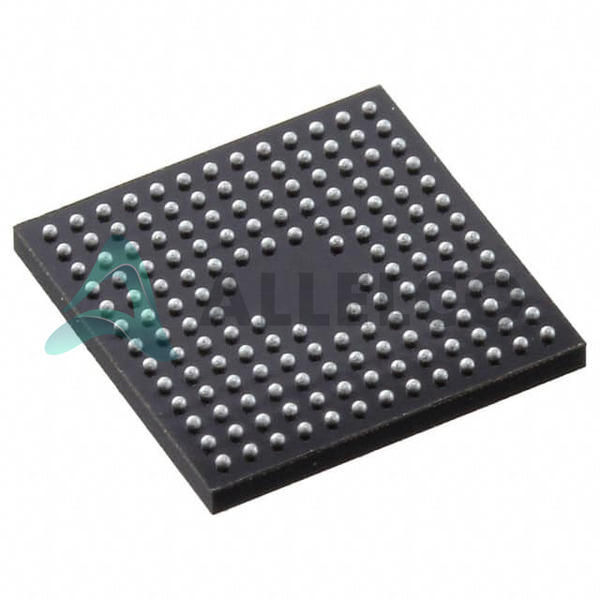

Verpakking / doos | 157-VFBGA | |
Pakket | Tray |
Productkenmerk | Attribuutwaarde | |
---|---|---|
oscillator Type | Internal | |
Temperatuur | -40°C ~ 85°C (TA) | |
Aantal I / O | 120 | |
montage Type | Surface Mount | |
EEPROM Size | 2K x 8 | |
gegevens Converters | A/D 24x12b | |
Core Size | 32-Bit Single-Core | |
Core Processor | ARM® Cortex®-M4F | |
connectiviteit | CANbus, I²C, IrDA, Microwire, QEI, SPI, SSI, UART/USART, USB OTG | |
Base Productnummer | TM4C123 |
De drie delen aan de rechterkant hebben vergelijkbare specificaties als Texas Instruments TM4C123GH6ZRBI.
Productkenmerk | ||||
---|---|---|---|---|
Onderdeel nummer | TM4C123GH6ZRBI | TM4C123GH6PZT | TM4C1290NCZADI3 | TM4C123GH6PMT7 |
Fabrikant | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
Program Memory Size | 256KB (256K x 8) | 256KB (256K x 8) | 1MB (1M x 8) | 256KB (256K x 8) |
RAM Size | 32K x 8 | 32K x 8 | 256K x 8 | 32K x 8 |
Base Productnummer | TM4C123 | TM4C123 | TM4C1290 | TM4C123 |
Core Processor | ARM® Cortex®-M4F | ARM® Cortex®-M4F | ARM® Cortex®-M4F | ARM® Cortex®-M4F |
Programmageheugentype | FLASH | FLASH | FLASH | FLASH |
Verpakking / doos | 157-VFBGA | 100-LQFP | 212-VFBGA | 64-LQFP |
Leverancier Device Pakket | 157-BGA Microstar Junior (9x9) | 100-LQFP (14x14) | 212-NFBGA (10x10) | 64-LQFP (10x10) |
Temperatuur | -40°C ~ 85°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 105°C (TA) |
connectiviteit | CANbus, I²C, IrDA, Microwire, QEI, SPI, SSI, UART/USART, USB OTG | CANbus, I²C, IrDA, Microwire, QEI, SPI, SSI, UART/USART, USB OTG | CANbus, EBI/EMI, I²C, IrDA, QSSI, UART/USART, USB OTG | CANbus, I²C, IrDA, Microwire, QEI, SPI, SSI, UART/USART, USB OTG |
randapparatuur | Brown-out Detect/Reset, DMA, Motion PWM, POR, WDT | Brown-out Detect/Reset, DMA, Motion PWM, POR, WDT | Brown-out Detect/Reset, DMA, Motion Control PWM, POR, PWM, WDT | Brown-out Detect/Reset, DMA, Motion PWM, POR, WDT |
Snelheid | 80MHz | 80MHz | 120MHz | 80MHz |
montage Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
gegevens Converters | A/D 24x12b | A/D 22x12b | A/D 24x12b | A/D 12x12b |
Voltage - Supply (Vcc / Vdd) | 1.08V ~ 3.63V | 1.08V ~ 3.63V | 2.97V ~ 3.63V | 1.08V ~ 3.63V |
Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
Serie | Tiva™ C | Tiva™ C | Tiva™ C | Tiva™ C |
Aantal I / O | 120 | 69 | 140 | 43 |
oscillator Type | Internal | Internal | Internal | Internal |
Pakket | Tray | Tray | Tray | Tray |
EEPROM Size | 2K x 8 | 2K x 8 | 6K x 8 | 2K x 8 |
Download TM4C123GH6ZRBI PDF -datasheets en Texas Instruments -documentatie voor TM4C123GH6ZRBI - Texas Instruments.
